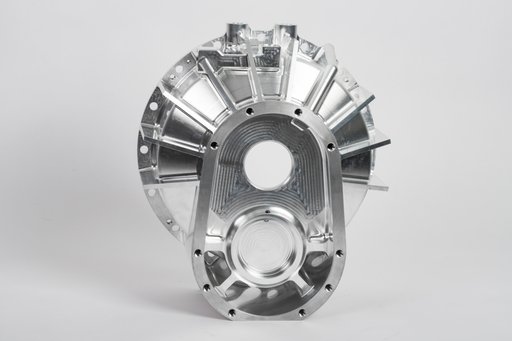

01CNC milling
CNC milling for housings, plates and brackets with pockets, profiles, holes and mounting faces.
CNC milling,
turning &
five-axis machining.

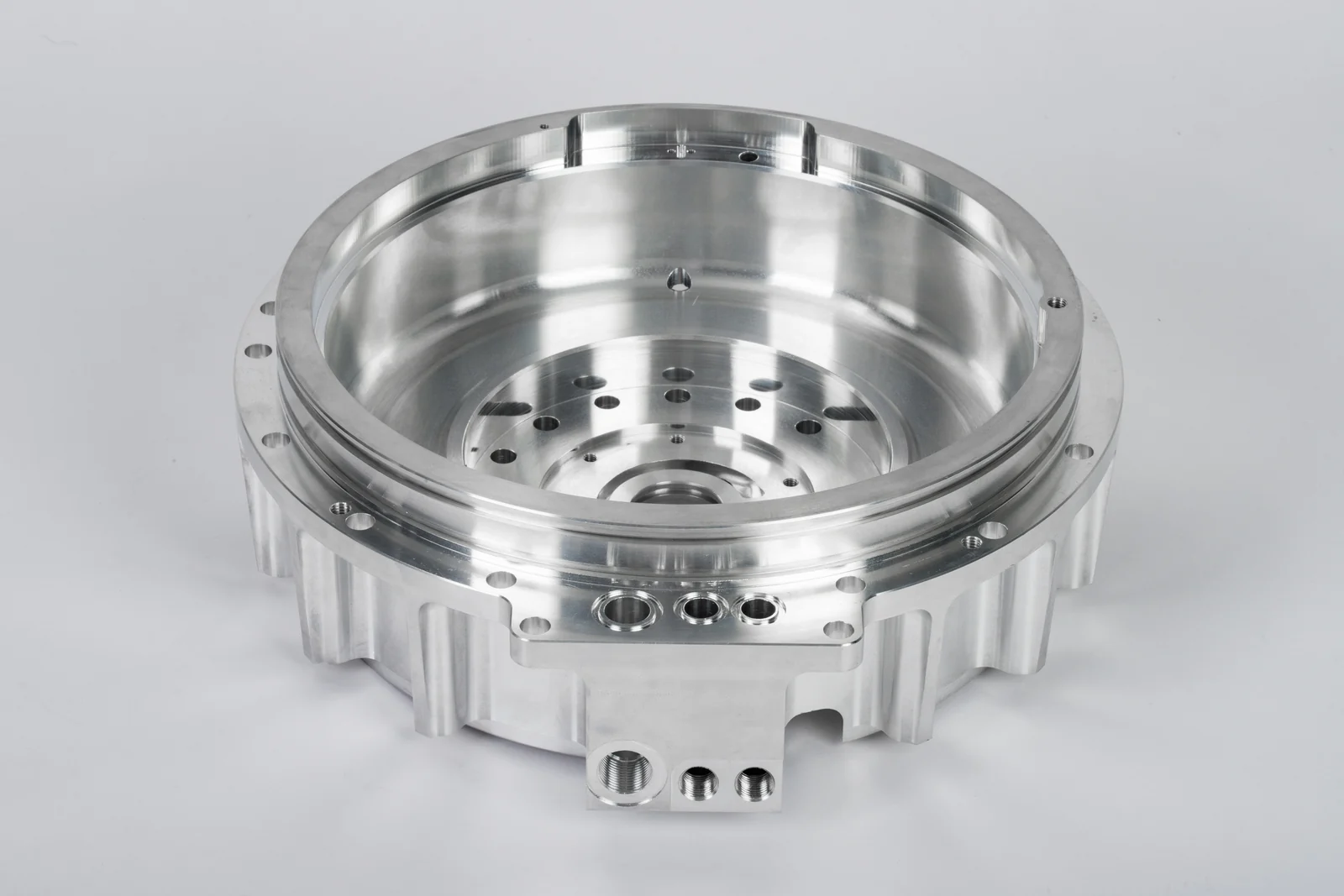

Machined housings, shafts and structural components, from prototypes to production orders. Send part files for a quote covering material, finishing and inspection.
CNC machining services
Parts can combine milling, turning, grinding, EDM and finishing. The quotation sets out the proposed operations and any exclusions.
01

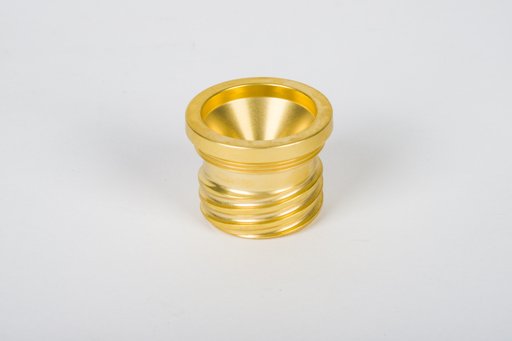

02CNC turning
CNC turning for shafts, sleeves and housings with diameters, bores and threads. Flats and cross-holes may require additional operations.

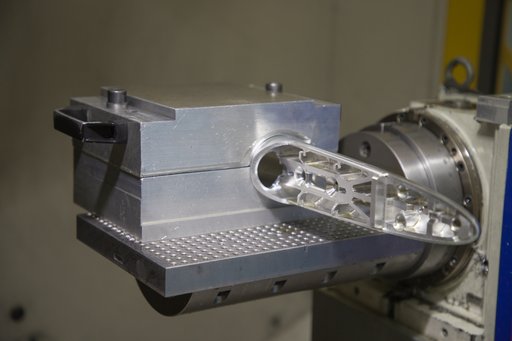

03Five-axis machining
Five-axis machining for complex surfaces and features on several faces, with tool access and workholding planned for the geometry.
Material grades
and finishes.
Material options include aluminum, stainless steel, titanium and engineering plastics. Grade, condition and treatment are specified with the order.
What to specify01
Aluminum
6061-T6 · 7075-T6
Metal02
Stainless steel
SUS304 · SUS316L
Metal03
Titanium
TC4
Metal04
Engineering plastics
POM · PEEK · FR-4
Polymer / compositeSurface treatments and masking
Finishing options include anodizing, bead blasting, electroless nickel, passivation, marking and powder coating.
Listed grades are RFQ options. Availability, finish compatibility and suitability are checked for the part. View materials and finishes ↗

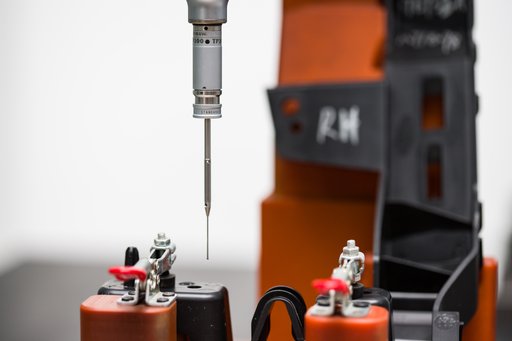

Measurement probe and component fixture.
Inspection and delivery documents
Inspection requirements can include dimensional checks, coordinate measurement, surface roughness and material verification. The quotation defines methods, coverage and documents.
- 01
Drawing requirements
Critical dimensions, datums, fits and surface conditions form the acceptance criteria.
- 02
Inspection reports
Measurement methods, report contents and sample coverage are agreed for the order, with reporting costs identified in the quotation.
- 03
Drawing revision
Matching model and drawing revisions keep the inspection scope tied to the part being ordered.
Design review examples
Three illustrative design exercises: an airflow prototype, a transmission component and an aluminum structure.
Engineering example / PrototypeAluminum airflow
Aluminum airflow
prototype.
Curved ribs, a central interface and assembly locations define the checks for a physical prototype. Later production requirements are considered separately.
Read the RFQ exampleEngineering example / TransmissionTurning, gear features
Turning, gear features
and mating fits.
A transmission component can combine turning, gear features and secondary operations, with fits, burrs and critical dimensions in one finished-part definition.
Read the RFQ exampleEngineering example / StructureDeep cavities,
Deep cavities,
thin walls and datums.
Deep cavities, thin walls, threads and mounting datums affect access, workholding and inspection for a one-piece aluminum structure.
Read the RFQ exampleIllustrative design exercises for reviewing your own part.
How to request a quote
Part files
Add the model, drawing and revision available for your part. State material, quantity, finish and critical requirements.
Drawing questions
Identify open geometry, material and inspection questions. Proposed changes need agreement before they become part of the accepted definition.
Quotation and order
Confirm the scope, inspection, requested delivery and commercial terms against the quotation for your part.
RFQ and drawing guides
Checklists and blank worksheets for RFQs, drawing packages and quote comparisons.
Procurement checklistWhat belongs
3D models and
Material grade,
What belongs
in a CNC RFQ?
Organize part identifiers, files, order quantities and open questions.
Open the guide Drawing preparation3D models and
2D drawings.
Check the export and identify where controlled requirements are defined.
Open the guide Material & finishMaterial grade,
quantity and finish.
Keep the base scope, alternatives and exclusions separate.
Open the guideOrdering questions
Contact DirectCNC WorksIs this an instant quoting service?
Quotes are prepared after reviewing the part files and requirements. The quotation states price, manufacturing route, inspection and delivery terms.
Which files should I send?
Send the model and drawing for the same revision, with material, quantity and finish. List critical dimensions and required inspection reports. Accepted CAD, PDF and ZIP formats and size limits are listed in the form.
Can I request another material or operation?
Describe the grade or operation in your request. Sourcing and process suitability must be confirmed for the part.
Where can I find contact details?
The contact address is in Shenzhen, Guangdong, China. View the contact details.
How are drawings handled?
Uploaded drawings are kept private for quotation review. Read the project file privacy policy for storage, access and deletion information.
